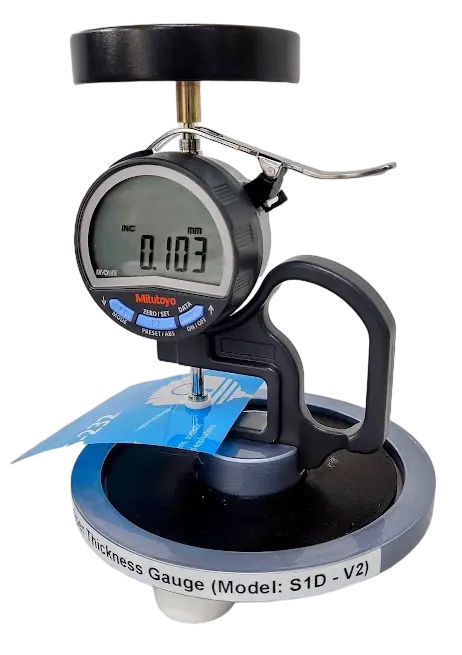

Caliper Thickness Gauge
Caliper Thickness Gauge

Caliper Thickness Tester (Dead-Weight Type)



Summary : Thickness is an important property of paper, paperboard, foil, film or Laminates, and variations in thickness can lead to variations in their other mechanical properties such as stiffness, permeability, etc.

Thickness is defined as the perpendicular distance between the two principal surfaces of the sample substrate.



Applicable to : Paper, Paperboards, Film, Foils, Laminates



Test Method : A sample is measured in a Dial Type or Digital Thickness Gauge mounted on a vertical stand with a weight (called as dead mass) on top. The weight exerts a constant pressure of 50 kPa (100 kPa as per ISO) at the contact surface (point of measurement). This ensures high repeatability in test results. Ordinary screw type micrometers are not to be used as they are highly operator dependent and any amount of excess pressure can compress the specimen and give lower results.



Test Standard : TAPPI T-411 / ASTM D 645 / ASTM F 2251 / ISO 534 / IS 1060

Tech Specs / Models

Caliper Thickness Gauge.

Dead-weight type. (Measuring Pressure @ 50kpa)

Suitable to measure Paper, Film, Foil  or any substrate in Sheet Form.

With Dead Mass equivalent to 50kpa pressure on foot.

(Other contact pressures can be provided on request)

Anvil Type :                Flat.

Anvil Diameter :         10 mm

Tip :                            Steel or Ceramic.

Fitted with Japanese / Swiss sensor of ultra-high precision.

This equipment generally confirms to TAPPI / ASTM / ISO standards.



Models Available :

Model # S10D

Digital Model with Manual Lifting Lever

Range 0 – 12 mm with least count of 0.01 mm (10 micron)

Accuracy : 20 microns

Battery (Button Cell) Operated  model.

IQOQ Documentation Set available for Pharmaceutical companies



Model # S1D

Digital Model with Manual Lifting Lever

Range 0 – 12 mm with least count of 0.001 mm (1 micron)

Accuracy : 3 microns

Battery (Button Cell) Operated  model.

IQOQ Documentation Set available for Pharmaceutical companies



Model # S0.5D

Digital Model with Manual Lifting Lever

Range 0 – 12 mm with least count of 0.0005 mm (0.5 micron)

Accuracy : 1.5 microns

With DC power adapter.

With spindle lifting cable (in lieu of lifting lever).

IQOQ Documentation Set available for Pharmaceutical companies



Model # S0.1D

Digital Model with Manual Lifting Lever

Range 0 – 12 mm with least count of 0.0001 mm (0.1 micron)

Accuracy : 0.5 microns

Battery (Button Cell) Operated  model.

IQOQ Documentation Set available for Pharmaceutical companies
